渐变

目录

• 线性渐变
• 放射渐变
• 渐变属性

渐变是一种有规律性的变化;引擎中分为线性渐变和放射性渐变

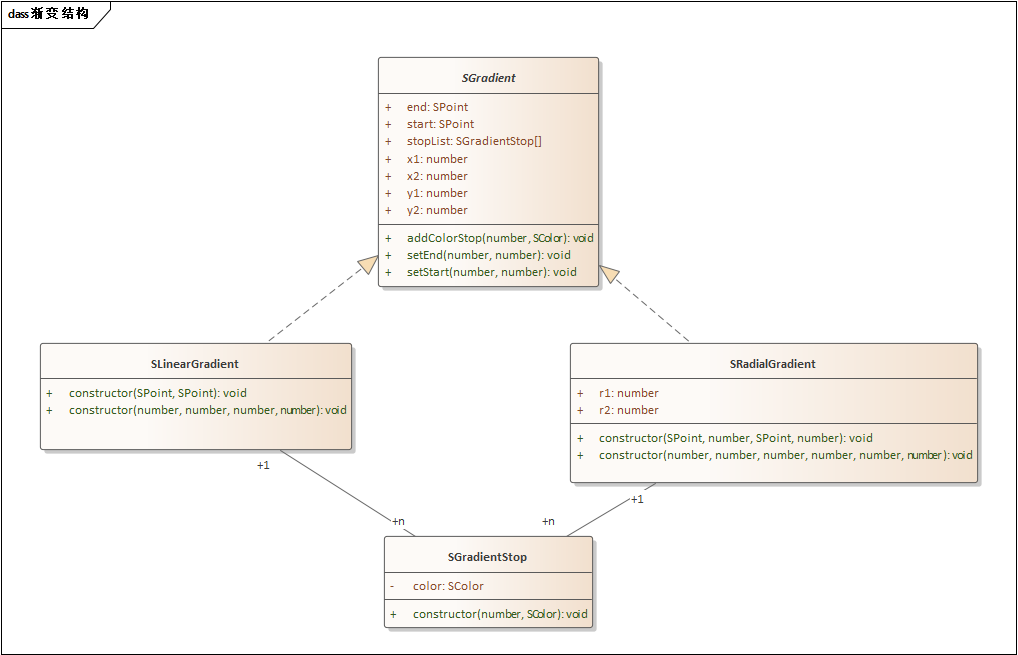

渐变实现结构图

以下示例均基于 GradRect item 绘制

查看代码

import {SGraphItem} from "@persagy-web/graph/lib";
import {SColor, SLinearGradient, SPainter, SRadialGradient, SRect} from "@persagy-web/draw/lib";

export class GradRect extends SGraphItem{
    minX = 0;
    minY = 0;
    maxY = 1000;
    maxX = 1000;
    gradient: SRadialGradient | SLinearGradient |  null = null;
    constructor(parent: SGraphItem | null, grad: SRadialGradient | SLinearGradient) {
        super(parent);
        this.gradient = grad;
        this.gradient.addColorStop(0, new SColor('#ff483b'));
        this.gradient.addColorStop(0.5, new SColor('#04ff00'));
        this.gradient.addColorStop(1, new SColor('#3d4eff'));
    }

    boundingRect() {
        return new SRect(
            this.minX,
            this.minY,
            this.maxX - this.minX,
            this.maxY - this.minY
        );
    }

    onDraw(painter:SPainter) {
        painter.pen.color = SColor.Black;
        painter.brush.gradient = this.gradient;
        painter.drawRect(0,0,1000,1000);
        if (this.gradient instanceof  SRadialGradient) {
            painter.brush.color = SColor.Transparent;
            painter.drawCircle(this.gradient.x1, this.gradient.y1, this.gradient.r1);
            painter.drawCircle(this.gradient.x2, this.gradient.y2, this.gradient.r2);
        }
    }
}

线性渐变

定义从上到下的渐变，作为矩形的填充样式： arg="0,0,0,1000"

定义从左到右的渐变，作为矩形的填充样式：arg="0,0,1000,0"

放射渐变

绘制一个矩形，并用放射状/圆形渐变进行填充：

情况1:圆心重合,圆1半径小于圆2半径 arg="500,500,50,500,500,500"

还有其他更多情况,实现更多图案,均可以调整参数来实现,一下列举几种情况

情况2:圆1在圆2内部,圆1半径小于圆2半径 arg="250,250,50,500,500,500"

情况3:圆1和圆2相离时，并且大小不相同

圆1半径小于圆2半径 arg="100,100,50,800,800,500"

圆1半径大于圆2半径 arg="200,200,300,800,800,50"

情况4:当圆1和圆2相离时，并且大小相同 arg="200,200,200,800,800,200"

情况5:当圆1和圆2相交时，并且大小相同 arg="400,400,200,800,800,200"

情况6:当圆1和圆2相交时，圆心相同，并且大小相同 arg="500,500,200,500,500,200"

以上示例均基于 GradRect.vue 组件绘制

查看组件使用代码

<template>
    <div>
        <canvas :id="id" width="740" height="400" tabindex="0"/>
    </div>
</template>

<script lang="ts">
    import { SGraphScene, SGraphView } from "@persagy-web/graph/lib";
    import { SLinearGradient, SGradient, SRadialGradient } from "@persagy-web/draw/lib";
    import { GradRect } from "./GradRect";
    import { v1 as uuid } from "uuid";
    import { Component, Prop, Vue } from "vue-property-decorator";

    @Component
    export default class GradientCanvas extends Vue {
        @Prop() private arg!: string;
        id: string = uuid();
        view: SGraphView | undefined;
        mounted(): void {
            this.init();
        };
        init(): void {
            const arr = this.arg.split(',');
            this.view = new SGraphView(this.id);
            const scene = new SGraphScene();
            let grad: SGradient;
            try {
                if (arr.length > 4) {
                    // @ts-ignore
                    grad = new SRadialGradient(...arr);
                } else{
                    // @ts-ignore
                    grad = new SLinearGradient(...arr);
                }
            } catch (e) {
                grad = new SLinearGradient(0,0,0,1000);
            }
            const item = new GradRect(null, grad);
            scene.addItem(item);
            this.view.scene = scene;
            this.view.fitSceneToView();
            this.view.scalable = false;
        }
    }
</script>

组件中需传入arg, 组件中解析此参数作为传入渐变类的参数

如:传入 arg="0,0,0,1000", 组件中解析为线性渐变, 并将 4 个参数传入 SLinearGradient;

如:传入 arg="500,500,50,500,500,500", 组件中解析为放射性渐变, 并将 6 个参数传入 SRadialGradient;

渐变属性

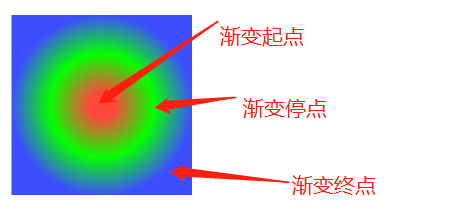

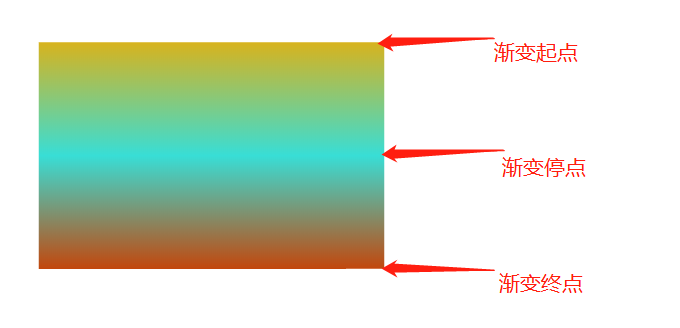

起点:渐变开始位置
stop停点:渐变过程中间色,可以有多个
结束点:渐变结束位置
